Extruded fin tubes for heat exchanger,air cooler

Base tube material: SA179 SMLS 25.4mmOD*2.77mmTHK*5970mmLG
Fin Material: AL1060; OD57.15mm X 10FPIX 0.4 mm THK


The finned tube provide by us is Extruded Type, which is different from the ones through HF Welding and Wrapping method. The fins are obtained by roll forming the outer surface of a soft seamless plain tube. The technology simply squeezes the wall thickness transforming into straight fins on the tube. So the fin and the tube are integrated and inseparable, which avoids the heat resistance between fin and tube, and optimizes heat exchange efficiency. Based on this structure, the Extruded type can survive more severe working conditions than other finned tubes. Also it, on the other hand, shows several unique features such as enhanced physical structure, resistance to vibration, anti-corrosion ability, and long service life, etc.

Manufacturing Process:
Finned tube is composited with iron-aluminum or copper-aluminum tube rolling out the fin, which feathers are tightness, small heat resistance, good heat transfer performance, high strength, small flow losses, strong corrosion resistant performance, not easy to deformation and a long working lifetime in cold and hot condition,etc.
The fin givescomplete protection to the base tube and is much stronger than the applied type due to work hardening of the fin material during the extrusion process.
Uppertemperature limit: 350°

Material: Aluminum, Copper, Carbon Steel, Alloy.etc.
ASTM A179/A192ASTM A106/A53,ASTM/ASME SA210,ASTM A213

Bare tube OD: 8-51mm Fin Pitch: 1.6-10mm Fin Height: <17mm Fin Thick: 0.2~ 0.4mm

Application: mainly used in petrochemical, electric power, paper making, building heating and other industry such as air cooler, air heater and air heater of food industry, plant starch spray drying system.

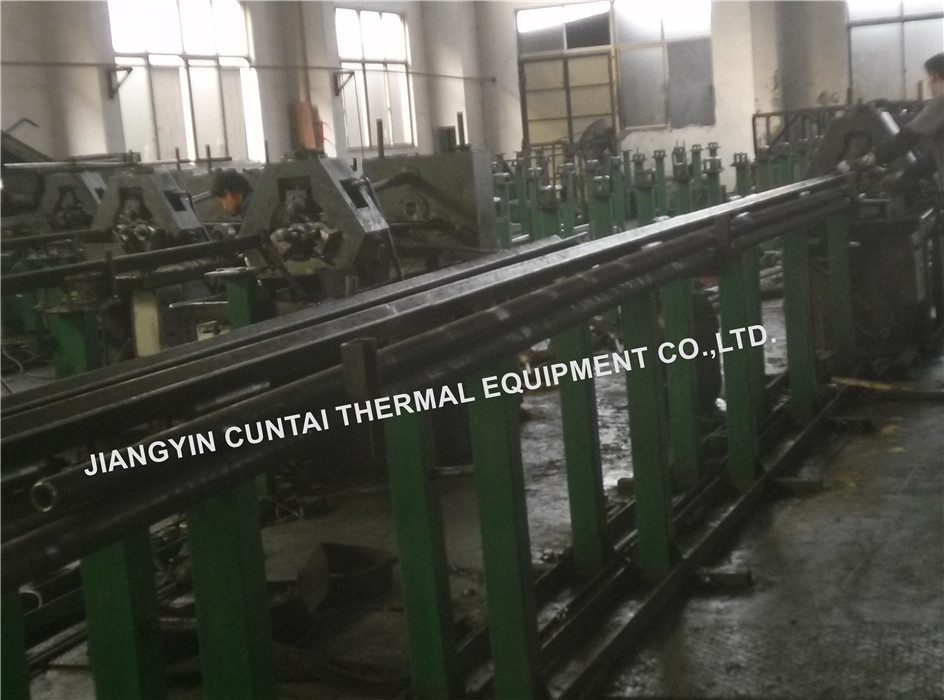

Capacity: Thirteen extrusion fining lines, daily capacity around 4000 meters


Products&Inspection Deatails:


Visual inspection for the tube












Following documentations should be reviewed & endorsed:
Incoming inspection report for raw material including bare tube/alu.tube / alu. strip / steel strip
Mill test cetification for bare tube
Mill test cetification for fin (alu.tube / alu. strip / steel strip)
Mill test cetification for finned tube
Finned tubes dimension & visual inspection reports

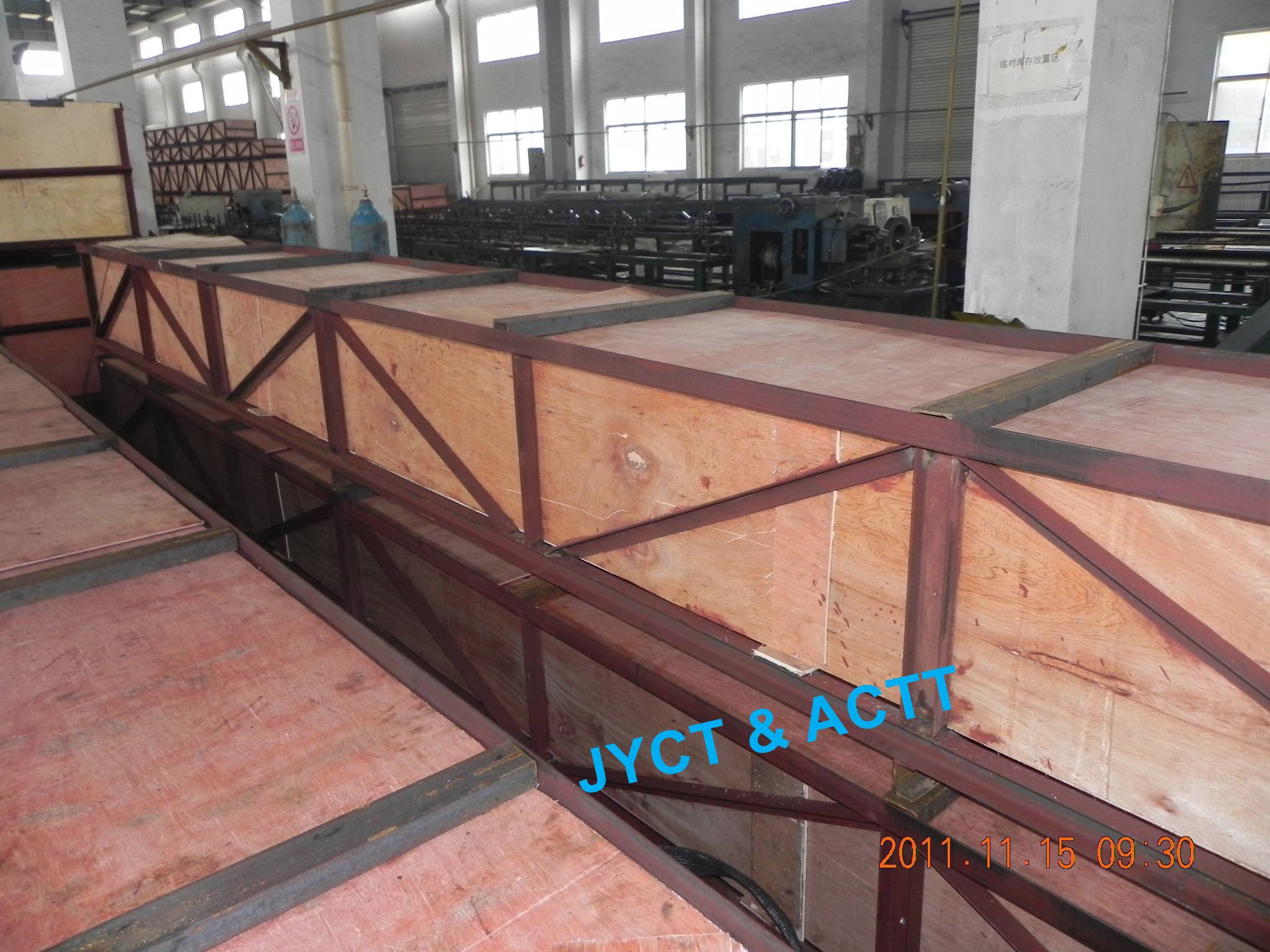

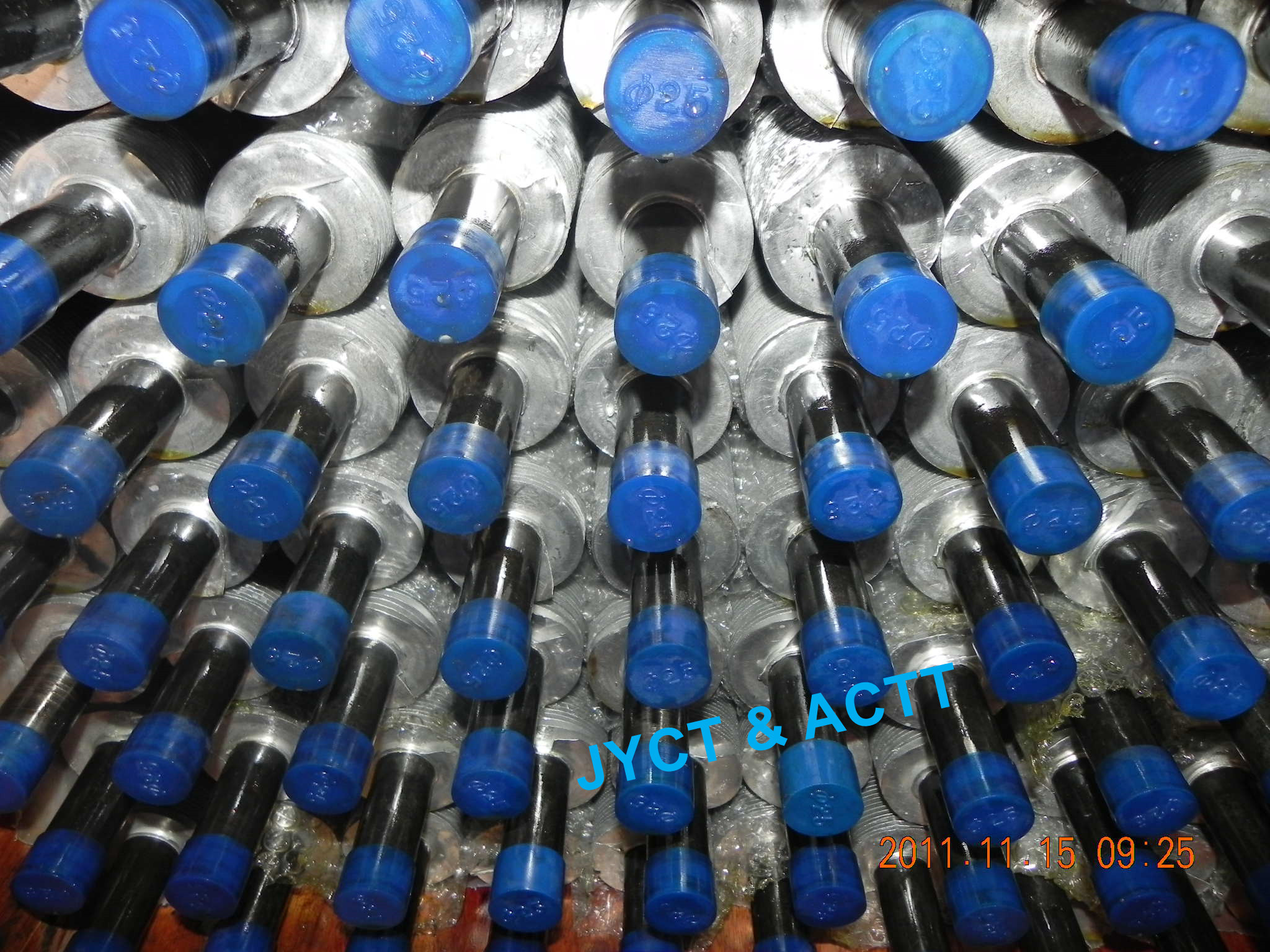

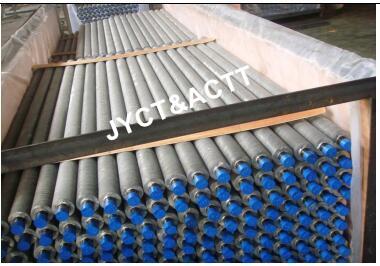

Packaging: sea worthy with plastic cap for each edge of core tube , finned tubes shall be put on the metal frame with wooden walls and plastic layer be considered between tubes rows to avoid damage and deformation of the fins







Manufacturing

JiangYin Cuntai Thermal Equipment Co., Ltd (also known as AARE Cuntai Thermal Limited)was established in Year 2008 with location at JiangYin City. We’ve been one certified finned tube manufacturer with ISO 9001：2008 Quality Management System which was authorized by UKAS(SGS) for Mechanical-forming surface-extended thermal-transfer tubes(DR-Extruded/L-wrapped/LL-overlapped/KL-Knurled/G-Embedded aluminum/Copper fin tube) , Welding-forming surface-extended thermal-transfer tubes(ERW HF spiral fin tube/ERW studded tube/DC ERW H/HH fin tube),Low Fin Tube, Spiral Tube ,Corrugated Tube & U Tube etc..

Our direct clients are mostly the manufacturers of air cooler, fired heater, heat exchanger, marine boiler, economizer, power plant boiler, HRSG boiler, waste heat recovery unit, air heater etc,and our end users are mainly from these industrial sectors: power plant, refinery & petrochemical, Offshore & marine.

Our workshop size 2500 m2, employees around 150, machinery investment more than 15000000USD. And we are board member of China thermal&water engineering manufacturers association.
