Extruded fin tubes for heat exchanger , Copper Nickel
Base tube material: (C7060T)SMLS 21.4mmOD*1.2mmTHK*1690mmLG
Fin Material: AL1060; OD41.27mm X 10FPIX 0.3 mm THK
Applications:
The common application fileds are:
- Heat exchangers units for power plant(electric, nuclear, thermal
and geothermal power plants);
- High corrosive systems (condensers, evaporators, sea water
desalinations, fertilizing, urea systems, ammonia, gas, corrosive
acids);
- The petroleum, chemical and petrochemical industries;
- The food processing and refrigeration industries;
- Natural gas treatment;
Manufacturing Process:
Finned tube is composited with iron-aluminum or copper-aluminum
tube rolling out the fin, which feathers are tightness, small heat
resistance, good heat transfer performance, high strength, small
flow losses, strong corrosion resistant performance, not easy to
deformation and a long working lifetime in cold and hot
condition,etc.
The fin givescomplete protection to the base tube and is much
stronger than the applied type due to work hardening of the fin
material during the extrusion process
Material: Aluminum, Copper, Carbon Steel, Alloy.etc.
C7060T, ASTM A179/A192ASTM A106/A53,ASTM/ASME SA210,ASTM A213
Bare tube OD: 8-51mm Fin Pitch: 1.6-10mm Fin Height: <17mm Fin Thick: 0.2~
0.4mm
| Name | Base tube
(OD) mm | Fin Pitch
(mm) | length
(m) |
| Min | Max | Min | Max | Min | Max |
| Extruded aluminum fin tube | 8 | 51 | 1.6 | 10 | 0.5 | 20 |
| L/LL/KL aluminum fin tube | 19 | 51 | 2.1 | 3.2 | 0.5 | 15 |
| Embedded aluminum fin tube | 19 | 42 | 2.3 | 3.2 | 0.5 | 15 |
| Low fin tube | 12.7 | 32 | 0.8 | 2 | 0.5 | 20 |
| Spiral fin tube | 12.7 | 70 | | | 0.5 | 20 |
| ERW HF spiral fin tube | 16 | 219 | 3 | 25 | 0.5 | 28 |
| ERW HF spiral serrated fin tube | 16 | 219 | 3 | 25 | 0.5 | 28 |
| Serrated width(mm)
10 min~26 max | Serrated depth(mm)
4 min~16 max |
| ERW studded tube | 89 | 200 | 16 | 50 | 2 | 15 |
| | | | | | |
| DC ERW H/HH fin tube | 25 | 51 | 9 | 25 | 1 | 15 |
| H/HH fins | Length(mm)
60 min-150 max | Thickness(mm)
1.5 min~4 max | Width(mm)
30 min~50 max |
Application: mainly used in petrochemical, electric power, paper making,
building heating and other industry such as air cooler, air heater
and air heater of food industry, plant starch spray drying system.
Capacity: Thirteen extrusion fining lines, daily capacity around 4000 meters
Products&Inspection Deatails:
Check the fin height
Check the bare end
Check the oveall llength
Following documentations should be reviewed & endorsed:
Incoming inspection report for raw material including bare
tube/alu.tube / alu. strip / steel strip
Mill test cetification for bare tube
Mill test cetification for fin (alu.tube / alu. strip / steel
strip)
Mill test cetification for finned tube
Finned tubes dimension & visual inspection reports

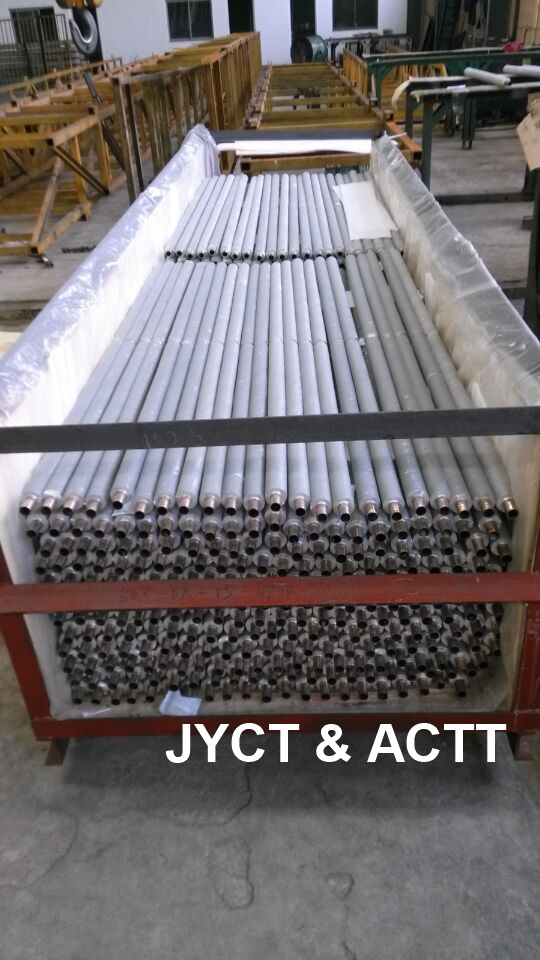

Packaging: sea worthy with plastic cap for each edge of core tube , finned
tubes shall be put on the metal frame with wooden walls and plastic
layer be considered between tubes rows to avoid damage and
deformation of the fins
FAQ
About our company
A------We have three company,
1. Aare Cun Tai Thermal Co., Ltd (Hong Kong, China)
2.Jiang Yin Cun Tai Thermal Equipment Co., Ltd (Jiangsu,
China)(Mill)
3.Jiang Yin Aare International Trading Co.,Ltd. (for export
procedure)
Besides the companies above mentioned, we don’t have any other
name.
About Our main business
A------DR(Extruded) / L(Wrapped) / LL(Overlapped) / KL-KLM
(Knurled) / G(Embeded) Fin Tube;
High Frequency Welding Fin Tube,Studded Tube, H/HH/Square Fin
Tube,Longitudinal Tube;
Elbows, Low Fin Tube,Spiral Tube, U bend , Corrugated Tube.
About Price terms
A------It could be EXW, FOB,CIF,CNF
About Payment Term
A------We usually accept payment by T/T in advance or by L/C
available against draft at sight
About Lead Time
A------Usually it takes about 35-45 days after we received your
confirmation.
However, it would depend on our production line schedule(the timing
clients place order)and the complication of the item.
About Quality Control
A----
Incoming inspection report for bare tube/alu.tube / alu. strip /
steel strip
Mill test cetification for bare tube
Mill test cetification for fin (alu.tube / alu. strip / steel
strip)
Mill test cetification for finned tube
Finned tubes dimension & visual inspection reports
About Sample
A---If you are interested in our above products, please contact us.
We can provide small samples in store for you, and you are welcome
to visit visit our factory
Our moulds can be customized,you could kindly leave an inquiry to
know more details about price, packing and shipping.
